Welcome to Platinum Resources
Learn about Platinum Tools products, view online tips, watch instructional videos, and more!
Choose your Platinum product family for help:
Browse Resources:
Connectors

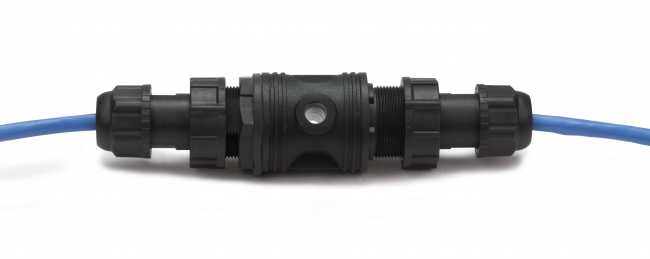

Waterproof RJ45 Splice CouplerP/N 740C
Downloads
Videos
Quick Tips
F and RG6 Quad, No more stab wounds.:
Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!
1. Use the EZ-GRIP Puck for holding & gripping the cable.
2. Thread the connector onto the F Connector Assembly Removal Tool.
T568A/T568B Wiring Chart, Great cheat sheet.:
Wire | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
T568A | W/G | G | W/O | BL | W/BL | O | W/BR | BR |
T568B | W/O | O | W/G | BL | W/BL | G | W/BR | BR |
