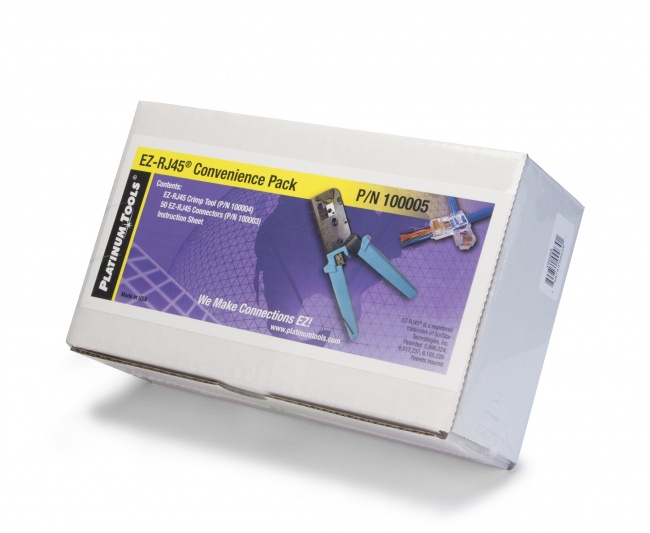

This EZ-RJ45 termination kit give installers the ability to easily terminate Category 3, 5 and 5e cabling. This kit comes with the popular EZ-RJ45 Crimp Tool (P/N 100004) and 50 pieces of the EZ-RJ45® CAT5/5e Connectors. This pass through style connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector.

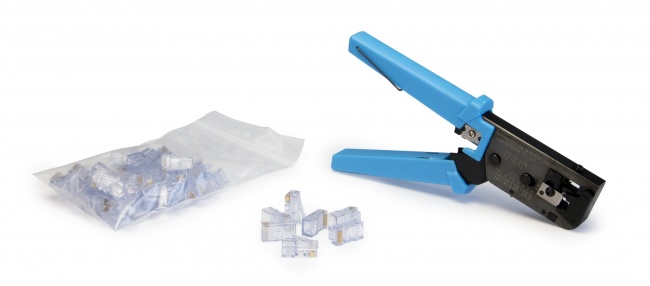

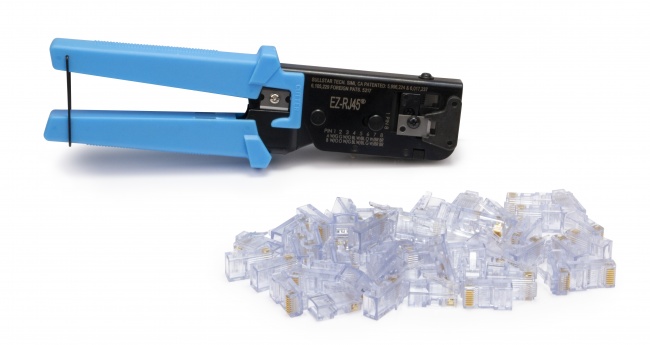

Kit Includes:
- EZ-RJ45® CAT5/5e Connectors (50pcs)
- EZ-RJ45® Crimp Tool
- NOT intended to be compatible with other brands >
Application
For use in Category 3, 5 & 5e compliant data networks.
Specifications
- Max Cable Outer Diameter: 0.240" (6.09mm)
- Max Insulation Diameter (Conductors) : 0.040" (1.016mm)
- Conductor: Solid or Stranded, 24-23 AWG
- Specifications: ANSI/EIA/TIA/TAA, UL Listed, RoHS/FCC Compliant
- Contacts: 50 micron gold plated
- Color: Clear/Transparent
