Standard CAT6 Shielded, 2 Piece High Performance RJ45 Connectors

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

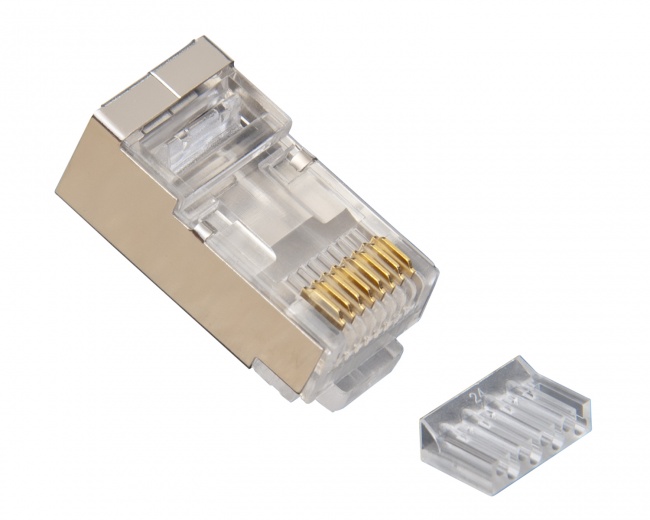

This 2 piece shielded system makes terminating CAT6 quick & easy. The staggered loading bar acts as the stopping point for pair separation and maintains wiring configuration. Simply flush cut the conductors and slide assembly into the connector and terminate.

  • Eight conductor mod plug with loading bar
  • Liner Bar Part No.: 1041
  • For conductors with an O.D. Range of .044
  • Uses 0.30mm (.012)
  • 3 prong contact for solid conductors only
  • Max cable jacket O.D., .285
  • RoHS & UL Compliant

Part Numbers

106205
RJ45 (8P8C) Shielded Cat6 2 pc. Connector w/ Liner, Round Solid, 3-Prong. 100/Tray.
106206J
RJ45 (8P8C) Shielded Cat6 2pc. Connector w/ Liner, Round Solid, 3-Prog. 100/Jar
106207C
RJ45 (8P8C) Shielded Cat6 2 pc. Connector w/ Liner, Round Solid, 3-Prong. 50/Clamshell.
106208C
RJ45 (8P8C) Shielded Cat6 2 pc. Connector w/ Liner, Round Solid, 3-Prong. 10/Clamshell.
106189
Spare Liner for Cat6 2pc Connector. 50/Clamshell.

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
