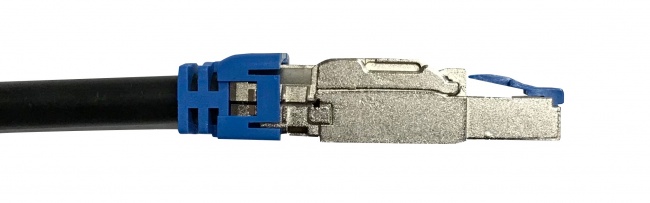

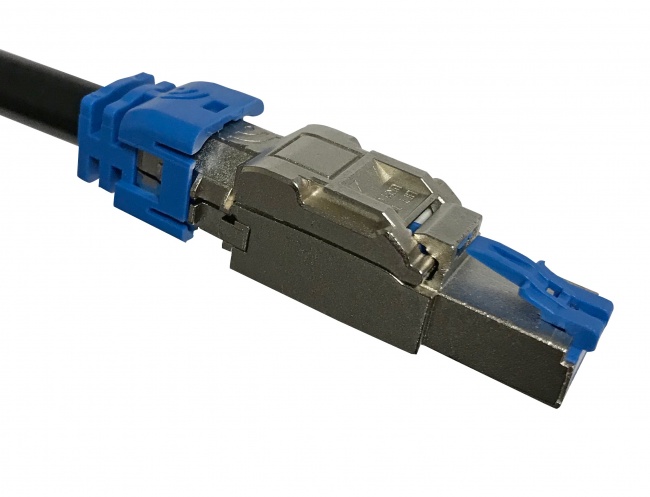

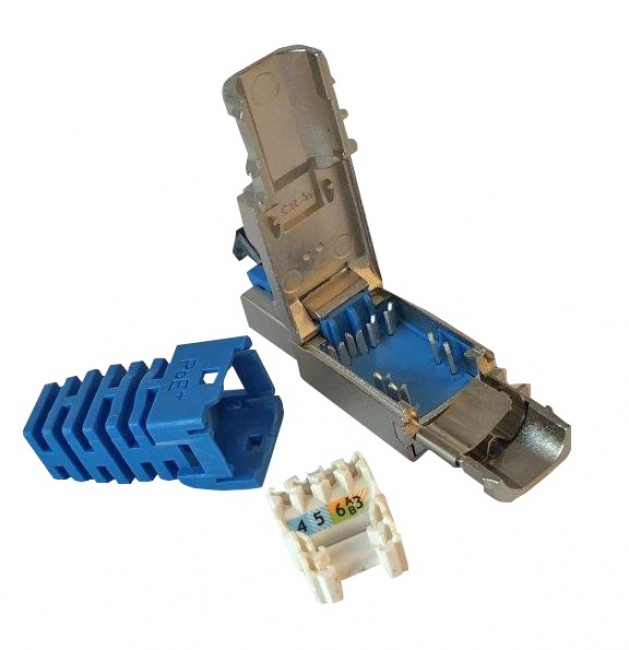

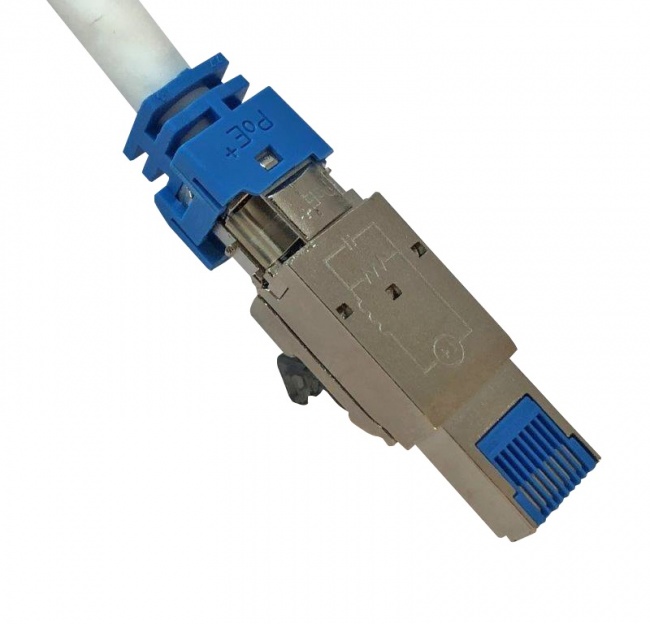

PoE+ 10Gig Shielded RJ45 Field Plug

P/N multiple

Share:
  • Twitter
  • Facebook
  • Google Plus
  • LinkedIn
Print:
  • Print This Page

The PoE+ 10Gig Shielded RJ45 Field Plug optimizes data throughput to PoE+ powered devices. Compatible with a wide assortment of large cables with large conductors. The cast-metal shell provides end-to end shielding from extraneous noise interference in high bandwidth applications.

  • HDBaseT PoE+ compliant
  • Cat7/6A/6
  • No special crimp tool required
  • 50 micron gold plated contacts
  • Solid or stranded, 26 - 23 AWG
  • UL and RoHS compliant
  • Insulation diameter: 0.032” - 0.057” (0.8mm - 1.47mm)
  • Cable OD: 0.236” - 0.315” (6.0mm - 8.5mm)

Part Numbers

106250
PoE+ 10Gig Shielded RJ45 Field Plug. 1/Bag
106251C
PoE+ 10Gig Shielded RJ45 Field Plug. 2/Clamshell

Tips

How you use your tools is just as important as what tool you choose for an application.

T568A/T568B Wiring Chart
Great cheat sheet.

T568A/T568B Wiring Chart — Great cheat sheet.

Wire 1 2 3 4 5 6 7 8
T568A W/G G W/O BL W/BL O W/BR BR
T568B W/O O W/G BL W/BL G W/BR BR
F and RG6 Quad
No more stab wounds.

F and RG6 Quad — No more stab wounds.

Pushing an F connector onto RG6 QUAD coax cable can be a real bear, BUT don't despair. Combine these two tools to make it EZ!

1. Use the EZ-GRIP Puck for holding & gripping the cable.

2. Thread the connector onto the F Connector Assembly Removal Tool.

Cut Strip Terminate Test
